Our service is like a excel document datastore.
and we use xorm as ORM framework,
Everytime we need to get data from DB, we call session.Find(&[]Author{}) with the slice of table beans,
but this have a problem,
- Memory allocation is very high
So every time lots of clients try to download excel file,
the memory consumption is too high, and downloadling excel file takes too long to complete.
Find the root cause with pprof
I wrote a benchmark and by leveraging GO's pprof profiling tool, we can easily check out the flamegraph
using some tool like pyroscope.
Here's the result we got:

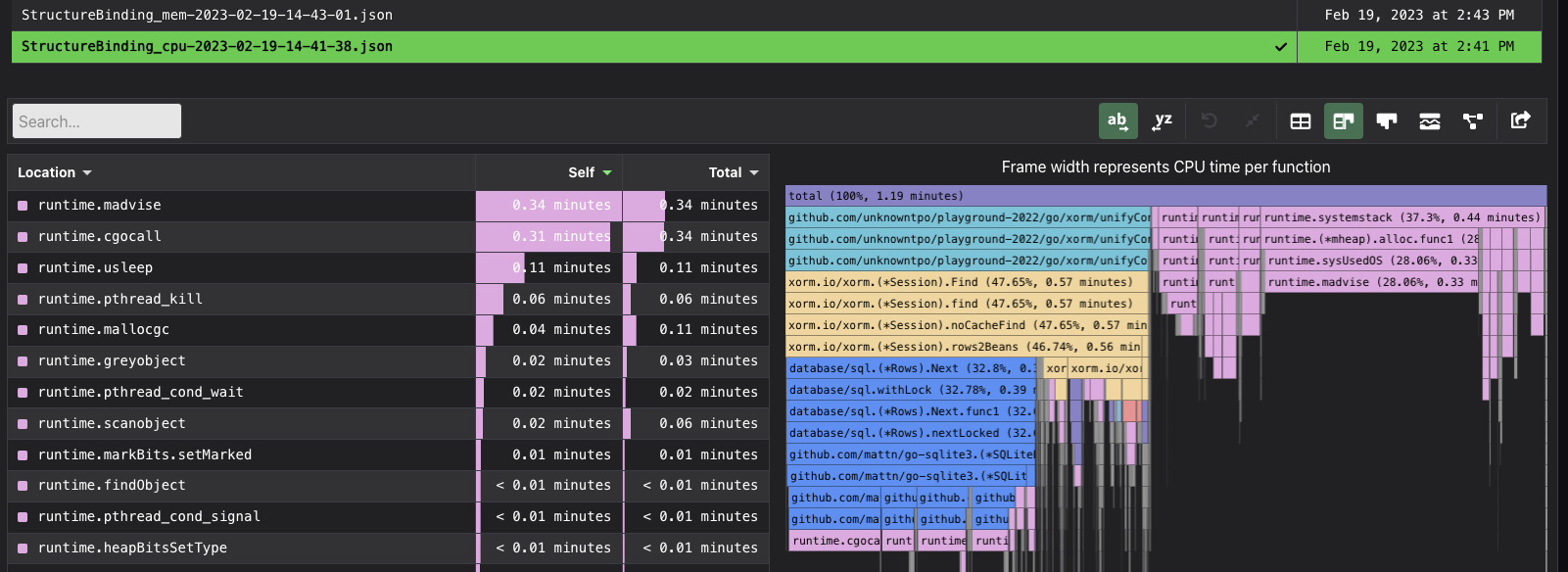

CPU
Memory Allocation
We can see that under the frame of (*Session).rows2Beans,
except the function underneath xorm framework that we can't touch,
(*Session).slice2Bean took a lot of CPU time and had lot of
memory allocation.
The problem of Structure Binding
After took a look at the code in noCacheFind, I found that if we use bean (a structure with information about db schema definition) to hold the result set, xorm will call session.rows2Beans to convert rows into tableBean.
In sesson.rows2Beans(), it will:
- convert rows to slices (
[]any) by calling session.row2Slice()
- convert
[]any to []bean by calling session.slice2Bean()
And this tooks a lot of time.
But I also found that if we use [][]string to hold the result set,
after getting xorm.Rows (underlying data structure is database/sql.Rows), noCacheFind() will call rows.Scan for each row, so simple ! This is the chance we can make session.Find() much faster.
Step 1: Use [][]string to hold the data
Based on the assumption, we can use [][]string to reduce the cost of structure binding, you can see the benchmark below unifyContainerNoPool
.
Step 2: Use sync.Pool to reduce memory allocation
But it still need huge amount of memory allocation for every []string and every [][]string, let's see how we can reduce this cost.
The solution I came out is very simple, if memory allocation is time-consuming,
why don't we reuse the data structure in memory ? In this case,
we're using [][]string
var unifyContainerRowPool = sync.Pool{
New: func() interface{} {
conRow := make([]string, DefaultContainerColLen)
conRow = resetUnifyContainerRow(conRow)
return conRow[:0]
},
}
var unifyContainerPool = sync.Pool{
New: func() interface{} {
con := make([][]string, 0, DefaultContainerRowLen)
return con
},
}
Experiment:
To demonstrate the improvement of our code, I design a simple benchmark,
There are three ways we can get data from database.
- Use
[]Author to hold the data (Structure Binding)
- Use
[][]string to hold the data (Unify Container without sync.Pool)
- Use
[][]string to hold the data, and use sync.Pool to reuse [][]string (Unify Container with sync.Pool)
For row number between 1000 and 8000
to demonstrate the benefit of sync.Pool,
we use runtime.NumCPU() worker to perform runtime.NumCPU()*4 jobs, every job gets all rows from the author table
$ make BENCHTIME=1s
go test -benchmem -benchtime=1s \
-bench=. \
| tee data/result_all.txt
goos: darwin
goarch: arm64
pkg: github.com/unknowntpo/playground-2022/go/xorm/unifyContainer
BenchmarkContainer/StructureBinding-1000-8 13 78949647 ns/op 91926655 B/op 3146081 allocs/op
BenchmarkContainer/UnifyContainerWithPool-1000-8 31 39028380 ns/op 31799634 B/op 1882362 allocs/op
BenchmarkContainer/UnifyContainerNoPool-1000-8 22 48651809 ns/op 48547759 B/op 2407600 allocs/op
BenchmarkContainer/StructureBinding-2000-8 8 137213729 ns/op 189730109 B/op 6284178 allocs/op
BenchmarkContainer/UnifyContainerWithPool-2000-8 15 72343683 ns/op 63592857 B/op 3759864 allocs/op
BenchmarkContainer/UnifyContainerNoPool-2000-8 12 87559920 ns/op 97780912 B/op 4807668 allocs/op
BenchmarkContainer/StructureBinding-3000-8 6 199308167 ns/op 281507561 B/op 9422225 allocs/op
BenchmarkContainer/UnifyContainerWithPool-3000-8 10 105695333 ns/op 97377107 B/op 5654077 allocs/op
BenchmarkContainer/UnifyContainerNoPool-3000-8 8 128159927 ns/op 146226483 B/op 7207695 allocs/op
BenchmarkContainer/StructureBinding-4000-8 4 256713490 ns/op 379839898 B/op12560279 allocs/op
BenchmarkContainer/UnifyContainerWithPool-4000-8 8 140550521 ns/op 129773817 B/op 7537186 allocs/op
BenchmarkContainer/UnifyContainerNoPool-4000-8 7 165150417 ns/op 195457696 B/op 9607724 allocs/op
BenchmarkContainer/StructureBinding-5000-8 4 323341906 ns/op 486299350 B/op15698332 allocs/op
BenchmarkContainer/UnifyContainerWithPool-5000-8 7 162782482 ns/op 163561488 B/op 9417513 allocs/op
BenchmarkContainer/UnifyContainerNoPool-5000-8 5 200822450 ns/op 245477224 B/op12007762 allocs/op
BenchmarkContainer/StructureBinding-6000-8 6 195379785 ns/op 195452422 B/op11307507 allocs/op
BenchmarkContainer/UnifyContainerWithPool-6000-8 6 195379785 ns/op 195452422 B/op11307507 allocs/op
BenchmarkContainer/UnifyContainerNoPool-6000-8 4 258140198 ns/op 296804806 B/op14407787 allocs/op
BenchmarkContainer/StructureBinding-7000-8 3 512568570 ns/op 720955394 B/op21974306 allocs/op
BenchmarkContainer/UnifyContainerWithPool-7000-8 4 251422083 ns/op 224965602 B/op13170581 allocs/op
BenchmarkContainer/UnifyContainerNoPool-7000-8 4 288070792 ns/op 349445756 B/op16807820 allocs/op
BenchmarkContainer/StructureBinding-8000-8 2 531542583 ns/op 792064800 B/op25112484 allocs/op
BenchmarkContainer/UnifyContainerWithPool-8000-8 4 271685614 ns/op 260817526 B/op15089126 allocs/op
BenchmarkContainer/UnifyContainerNoPool-8000-8 4 338913490 ns/op 395270596 B/op19207827 allocs/op
PASS
ok github.com/unknowntpo/playground-2022/go/xorm/unifyContainer 46.676s
The result shows that the number of allocation per operation is quite different,
The Structure Binding Method needs the largest number of allocations, and the speed is way slower that other two methods. When row number goes high, performance get worse very quickly.
The Method of using [][]string with sync.Pool on the other hand,
needs smallest number of memory allocation,
and compare to the one without sync.Pool, and because memory allocation takes significant amount of time, it's still faster.

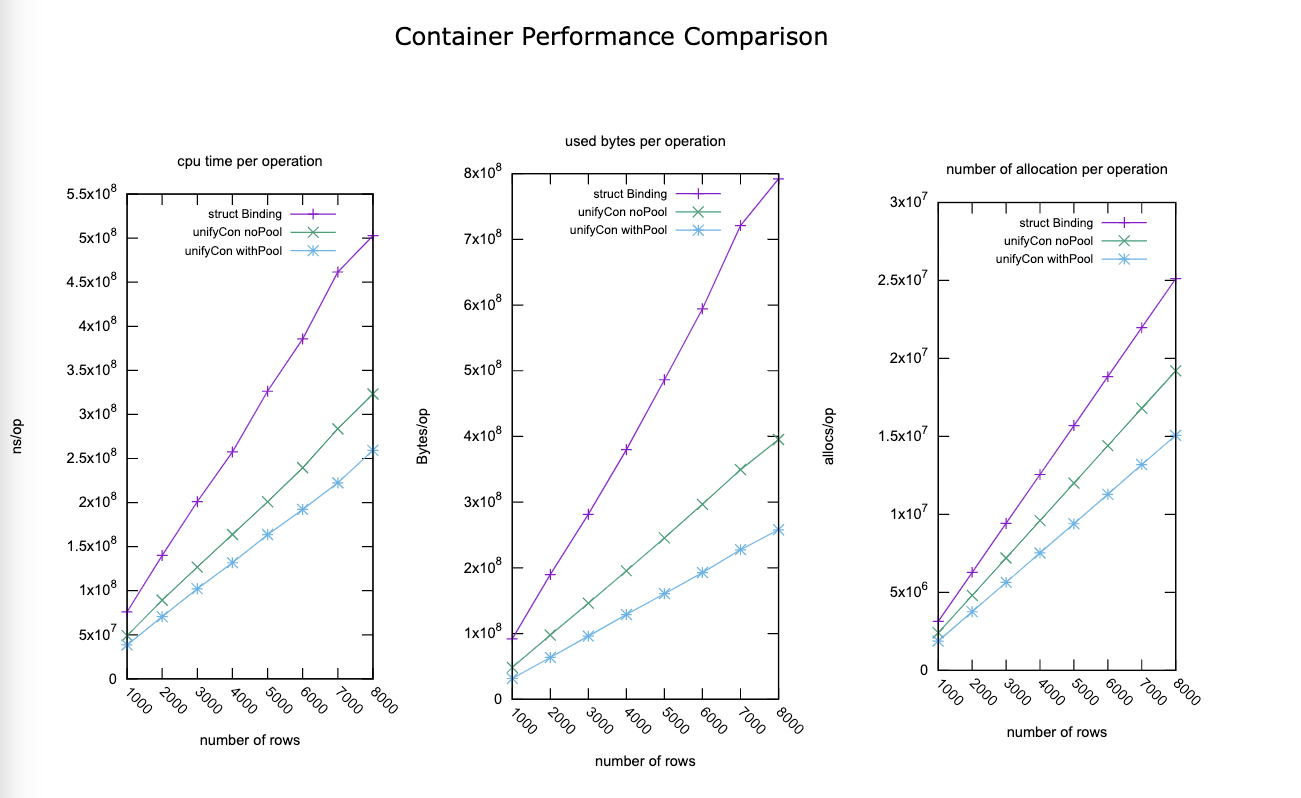

Here's the plot:
I put my code at the repo, please go check it out!
